Intelligent terminal for distributed energy integration and edge coordination
Intelligent terminal for distributed energy integration and edge coordination

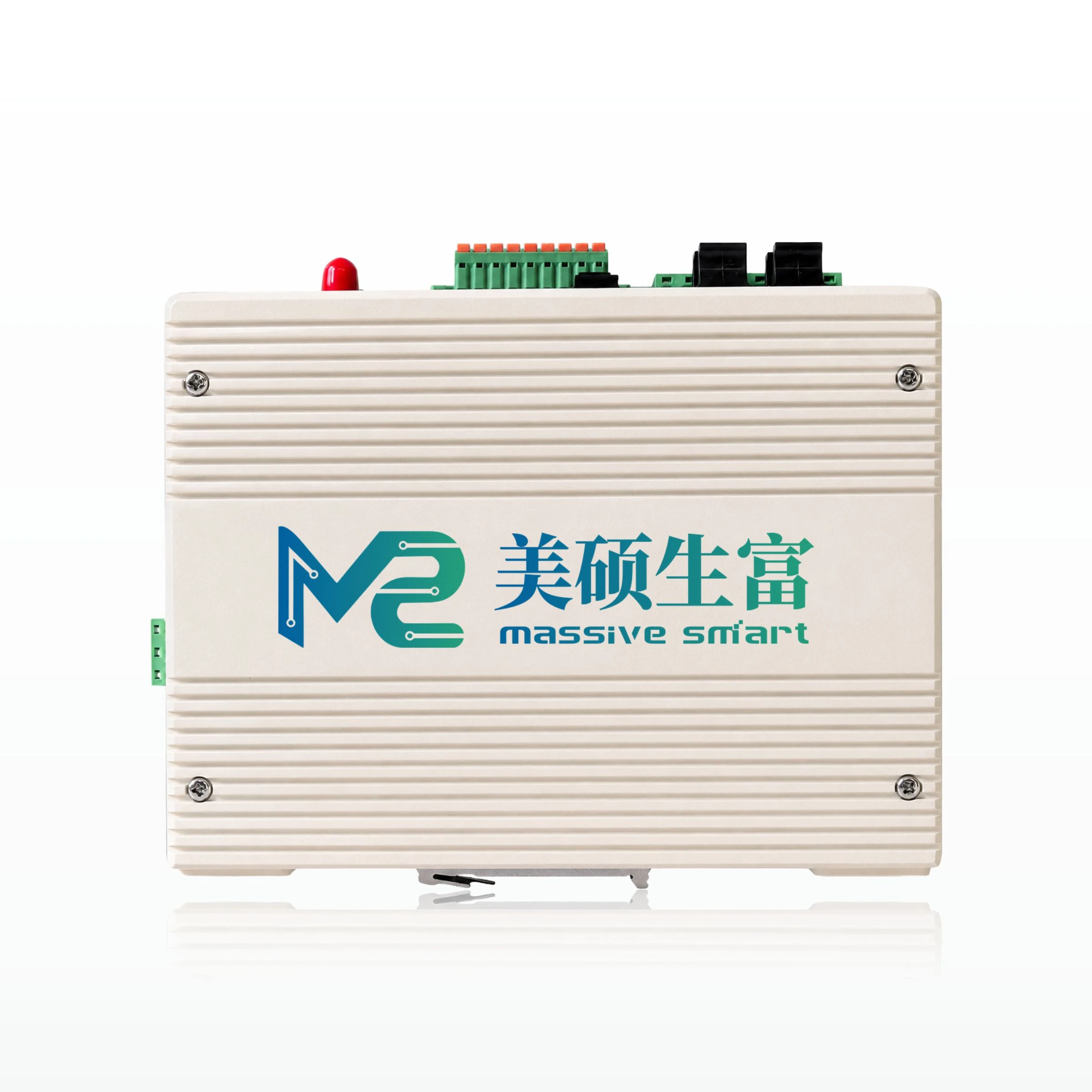

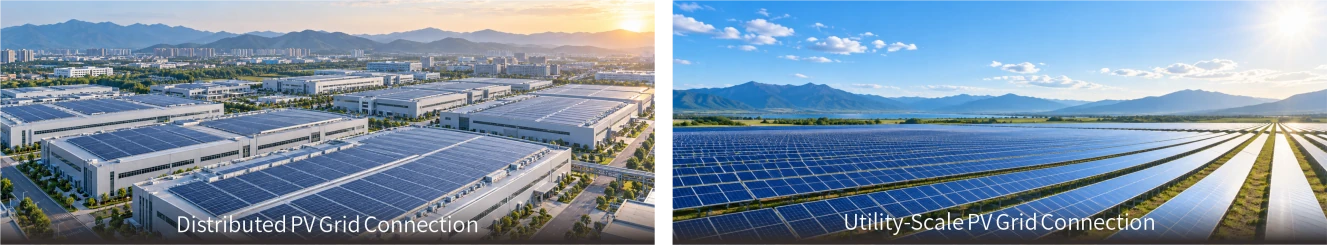

The Massivene Intelligent Control Terminal uses a high-performance multi-core processor and security chip. It supports plug-and-play standard protocols, open edge computing and cloud-edge coordination, with data acquisition, protocol conversion, data forwarding and secure transmission. AGC, AVC and PCS auxiliary control algorithms can be deployed. Remote OTA, Python secondary development, graphical configuration and logic programming support distributed energy integration, plant grid-connection retrofit and virtual power plant applications.
Supports field data acquisition, protocol conversion and data forwarding for distributed energy integration and data aggregation.
Supports AGC, AVC and PCS auxiliary control algorithms and receives edge-cluster commands for renewable-device operating-mode changes, peak shaving and frequency regulation.
Supports cloud-edge coordination and secure transmission for data exchange between field terminals and upper-layer systems.
Supports remote OTA, Python secondary development, graphical configuration, logic programming and a smart-gateway app for remote maintenance, upgrades and application expansion.
| Parameter | Technical data |
|---|---|
| Model | MS-SCT500 |
| Dimensions | 120*69*160.1mm (L*W*H) |
| Mounting | Cabinet installation; DIN-rail or wall mounting |
| Hardware | High-performance quad-core CPU, 1.5 GHz; 4 GB RAM, 128 GB ROM, expandable with a TF card. |
| Power supply and consumption | 95–250 V AC ±20%, 47–440 Hz; also supports 12–36 V DC; power consumption ≤8 W, 15 VA; built-in supercapacitor |
| Operating temperature | ﹣40°C~+70°C |
| Storage temperature | ﹣40°C~+85°C |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 70~110kPa |
| Altitude | <3000m |
| Time synchronisation | Built-in RTC; error ≤0.5 s/day |
| Insulation/EMC | Complies with GB/T 14598.3, GB/T 17626 and related standards; Level 4 for ESD, radiated RF, EFT and surge; Level 5 for power-frequency magnetic field |
| RJ45 ports | 4xRJ45，10/100/1000M |
| RS-485 ports | 6 ports |
| Other interfaces | 1×HDMI, 1×USB, 2×DI (internal excitation), 2×DO (normally open) |
| Wireless communications | Optional 4G full-band connectivity |
