Smart MCCB integrating LV sensing, protection and communications for digital distribution networks
Smart MCCB integrating LV sensing, protection and communications for digital distribution networks

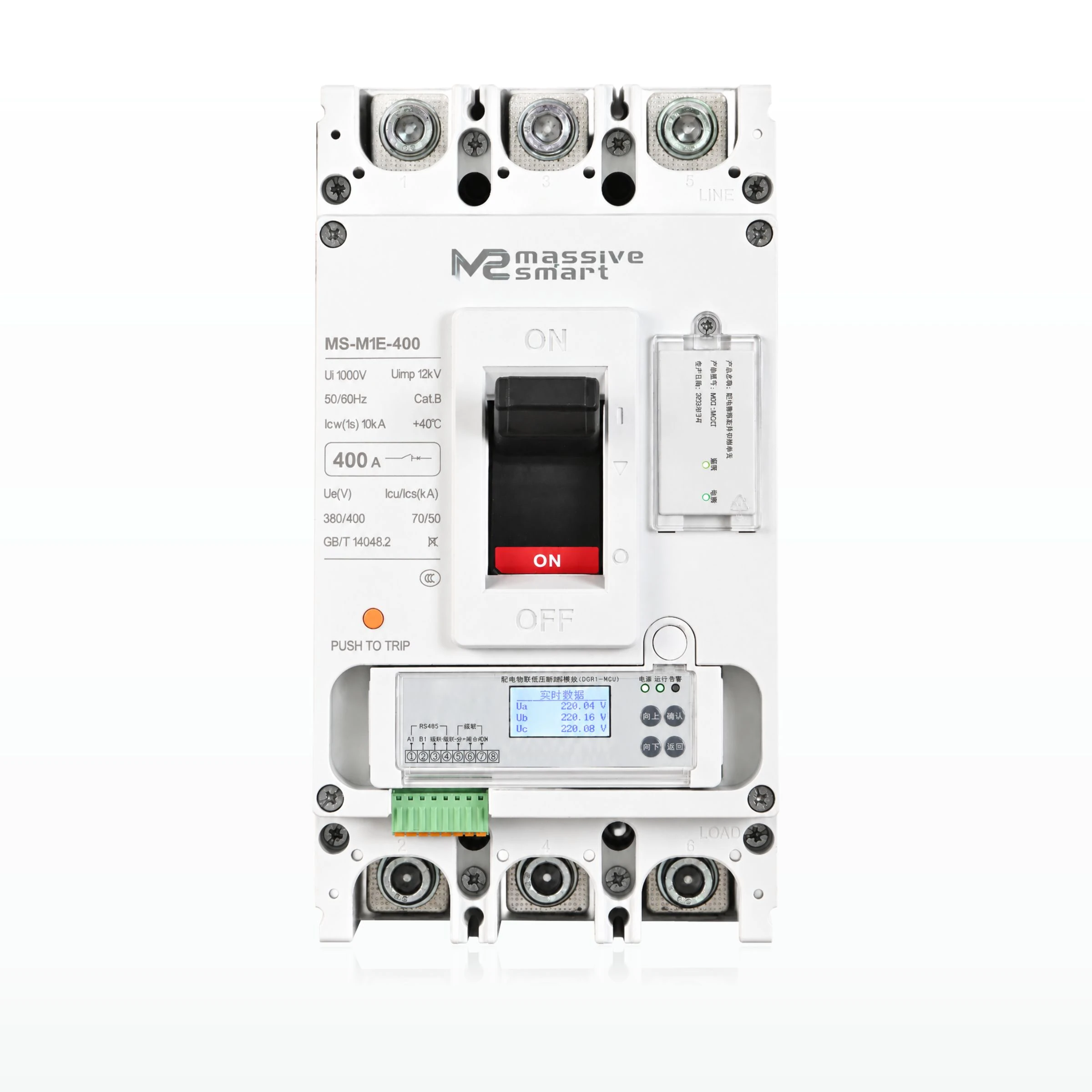

The Massivene integrated-sensing Smart MCCB is designed for next-generation power systems and digital LV distribution. It combines circuit protection, electrical measurement, status sensing and data communications in one device, upgrading the conventional LV switch from a single protection component to an intelligent end device that supports status visibility, fault protection and digital O&M.
Provides three-stage overcurrent protection: long-time overload, short-time short-circuit and instantaneous short-circuit protection. Optional thermal-magnetic backup, phase-loss, neutral-loss, overvoltage, undervoltage and overtemperature protection improves circuit protection and upstream/downstream coordination.
Collects voltage, current, power, energy, temperature and breaker status data, and provides energy, load, outage and operating statistics for circuit monitoring, fault assessment and O&M analysis.
Monitors harmonics, three-phase unbalance, voltage fluctuation, voltage sag, interruption and swell, providing a more complete data foundation for LV distribution condition analysis.
Supports RS-485, HPLC and Bluetooth. RS-485 supports Modbus and DL/T 645 and works with smart gateways and upper-layer systems to upload operating data, status and alarms.
| Model and Rating | MS-M1E-400A | |
|---|---|---|
| Frame current(Inm) | 400A | |
| Rated operational voltage(Ue) | AC400V | |
| Rated current(In) | 0.4-1 x In | |
| Rated frequency(f) | 50/60Hz | |
| Poles | 3P | |
| Rated insulation voltage(Ui) | 1000V | |
| Rated impulse withstand voltage(Uimp) | 12kV | |
| Rated short-time withstand current(Icw) | 10kA/s | |
| Utilisation category | B | |
| Trip-unit type | Electronic, electromagnetic or thermal-magnetic | |
| Ultimate short-circuit breaking capacity(Icu) | 65kA | |
| Service short-circuit breaking capacity(Ics) | 50kA | |
| Arc flash distance | ≤100mm | |
| Operating performance | Electrical endurance | 2000 operations |
| Mechanical endurance | 8000 operations | |
| Total operations | 10000 operations | |
| Overall and Mounting Dimensions | Length | 140mm |
| Width | 257mm | |
| Depth | 120mm |
